Bikes > BMC > Teammachine > Teammachine SLR FIVE

  • BMC Teammachine SLR FIVE

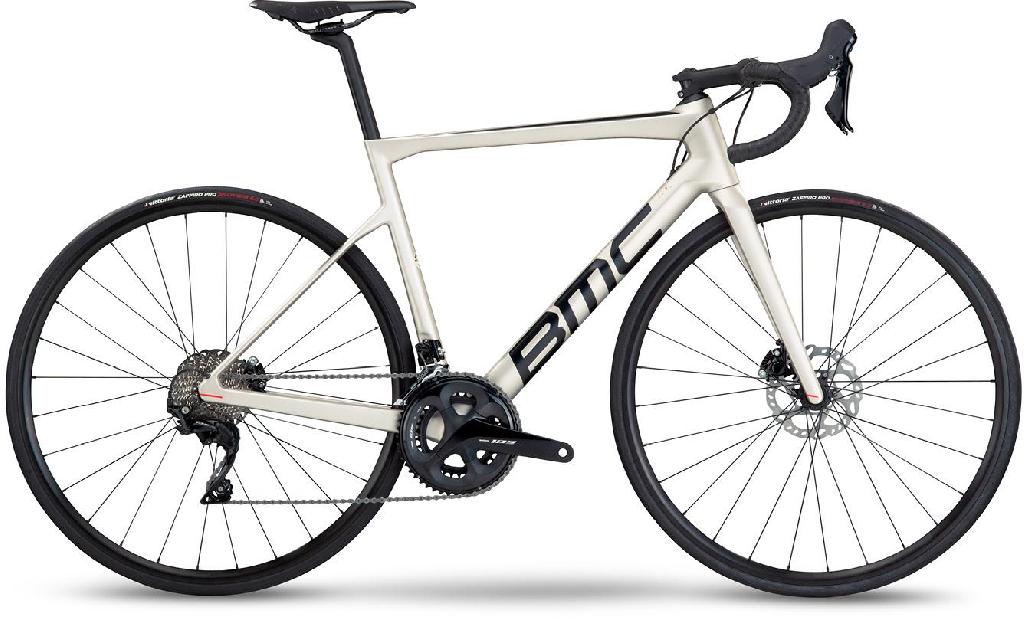

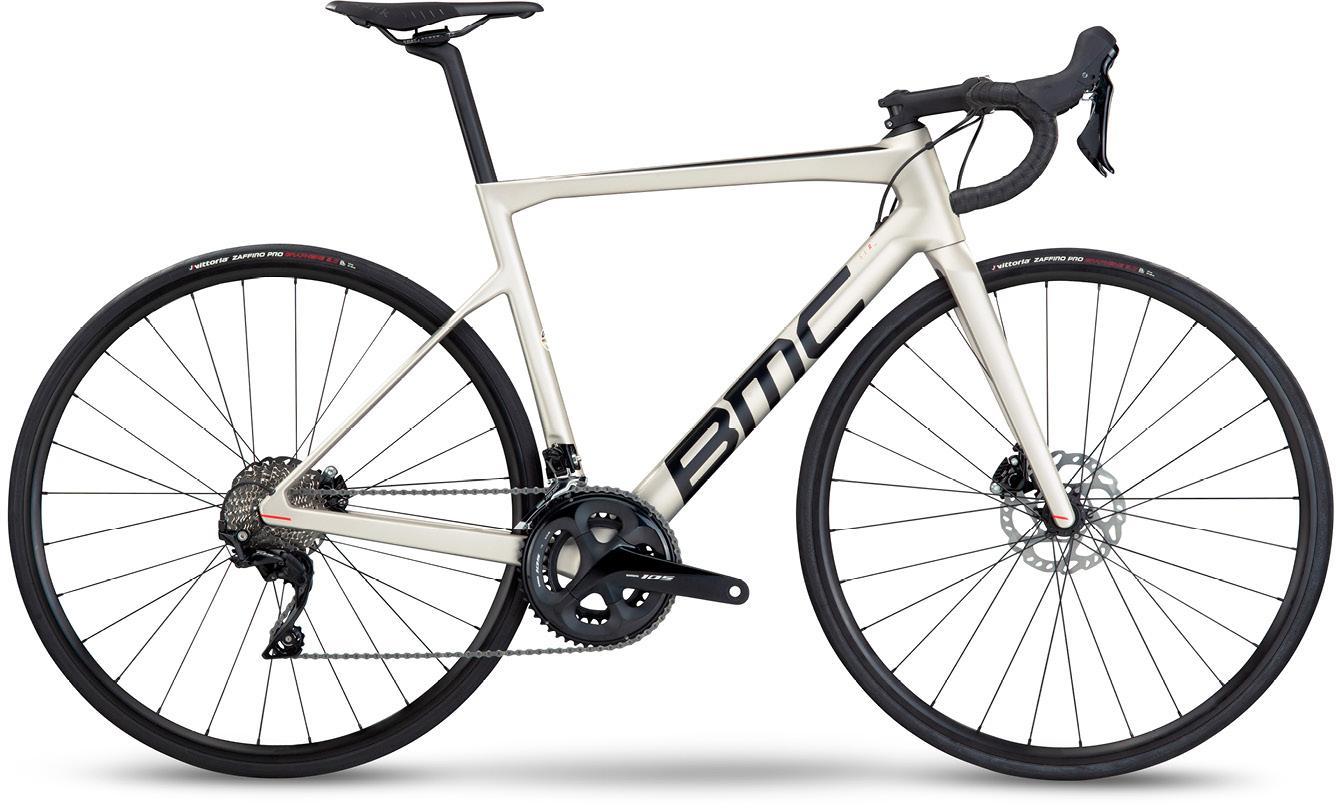

    Teammachine SLR FIVE


    Green Weeks

    CHF 2949 au lieu de 4399 -33%

    PDV CHF 4399sell
    (Pour les prix actuels, voir notre site internet.)
    Dérailleur
    SHIMANO 105 Di2
    Frein
    SHIMANO 105 - SM-RT70 Rotors (160/140)
    Cadre
    Teammachine SLR Carbon with Aerocore Design
    Stealth Dropout Design
    TCC Race Compliance Level
    PF86 Bottom Bracket
    Flat Mount Disc
    12x142mm Thru-Axle
    Optimized for Aerocore Bottle Cages
    Fourche
    Teammachine SLR Carbon
    TCC Race Compliance Level
    Internal Cable Routing
    Flat Mount Disc
    Stealth Dropout Design
    12x100mm Thru-Axle
    Rayon
    Mavic Open Disc
    • Cadre Teammachine SLR Carbon with Aerocore Design
      Stealth Dropout Design
      TCC Race Compliance Level
      PF86 Bottom Bracket
      Flat Mount Disc
      12x142mm Thru-Axle
      Optimized for Aerocore Bottle Cages
    • Fourche Teammachine SLR Carbon
      TCC Race Compliance Level
      Internal Cable Routing
      Flat Mount Disc
      Stealth Dropout Design
      12x100mm Thru-Axle
    • Manivelles SHIMANO 105 R7100 50-34T
    • Cassette SHIMANO 105 R7100 11-34T
    • Chaine SHIMANO 105 12spd
    • Manettes SHIMANO 105 Di2
    • Freins SHIMANO 105 - SM-RT70 Rotors (160/140)
    • Guidon BMC RAB 03 - Ergo Top Shape - Compact Bend
    • Potence BMC RSM01
    • Tige de selle Teammachine SLR Carbon D-Shaped Seatpost
      15mm Offset
    • Selle Fizik Antares R7
    • Moyeux CL-712 (F)/RXC-1425 (R) - Thru Axle
    • Jantes Mavic Open Disc
    • Pneus Vittoria Rubino - 25mm
    • Informations
      Weight: /
      Max Weight: 110 Kg
    Geometrie – teammachine SLR01  Dura Ace Di2
    Grösse 48 51 54 56 58 61
    Stack mm 506 530 550 565 584 608
    Reach mm 370 378 387 392 402 410
    Sitzrohr st mm 475 505 535 555 575 605
    Oberrohr tt' mm 520 535 550 560 575 590
    Steuerrohr ht mm 108 128 148 163 183 208
    Sitzwinkel sa ° 73.5 73.5 73.5 73.5 73.5 73.5
    Steuerwinkel sa ° 70.5 72 72.5 72.5 72.5 72.5
    Kettenstrebe rc mm 402 402 402 402 402 402
    Front center fc mm 571 575 586 596 611 626
    Radstand wb mm 963 967 978 988 1003 1019
    Tretlagerabsenkung mm 69 69 69 69 69 69
    Gabellänge fl mm 370 370 370 370 370 370
    Gabelvorlauf fr mm 41.6 41.6 41.6 41.6 41.6 41.6
    Nachlauf mm 76 66 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 100 110 120 130 130
    Vorbauwinkel ° +/- 6 +/- 6 +/- 6 +/- 6 +/- 6 +/- 6
    Lenkerbreite mm 420 420 420 440 440 440
    Lenker Drop mm 123 123 123 123 123 123
    Lenkervorbiegung mm 77 77 77 77 77 77
    Sattelstützenlänge mm 300 300 300 300 300 300
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 726 754 779 797 814 843
