Bikes > BMC > Roadmachine > Roadmachine 02 THREE

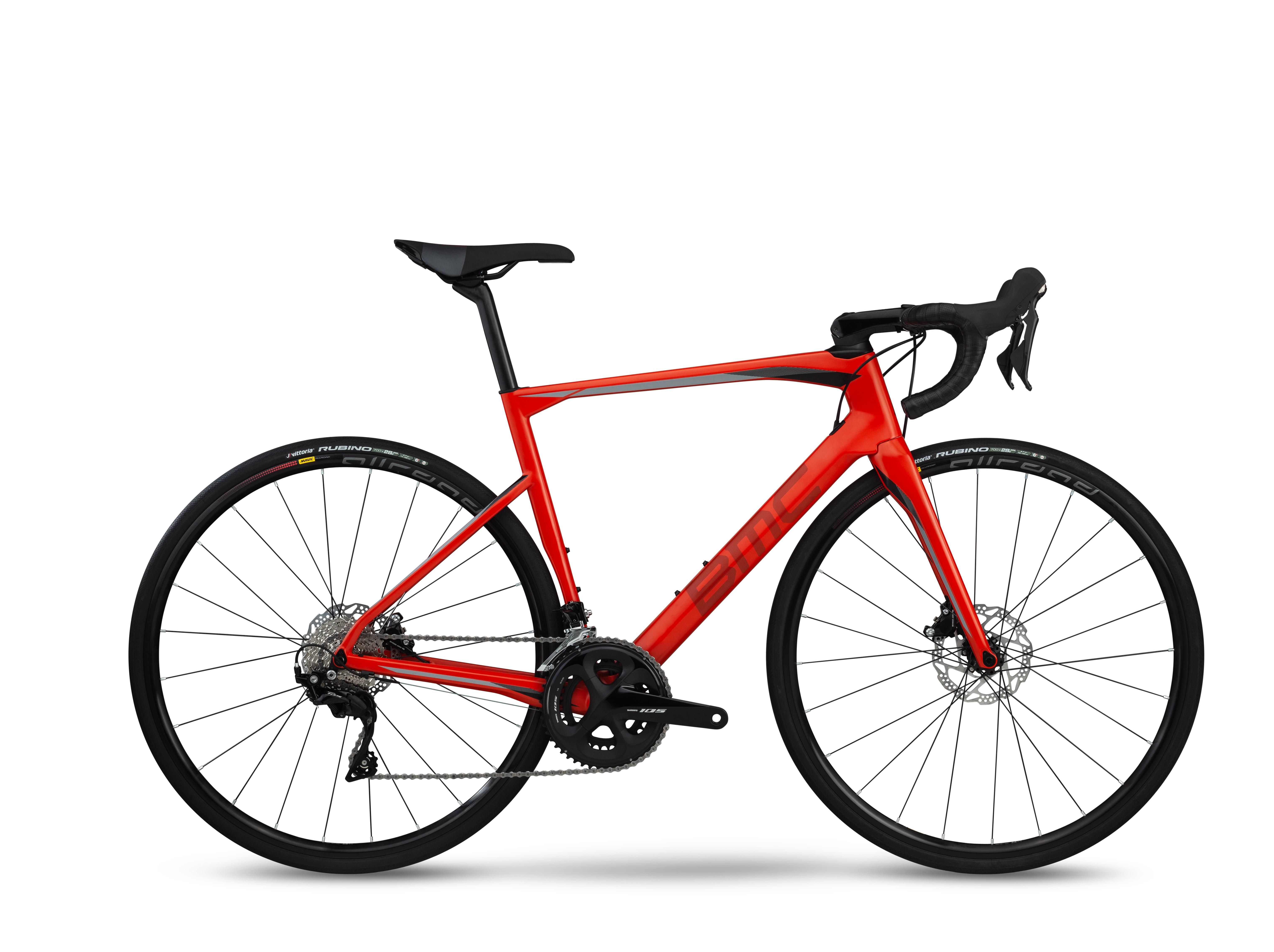

  • BMC Roadmachine 02 THREE

    Roadmachine 02 THREE


    Sale

    CHF 2499 au lieu de 3199 -22%

    PDV CHF 3199sell
    (Pour les prix actuels, voir notre site internet.)
    Dérailleur
    Shimano 105
    Frein
    Shimano 105, SM-RT70 Rotors (160/160)
    Cadre
    Roadmachine 02, PF86 bottom bracket, Flat Mount, 12x142mm thru-axle
    Fourche
    Roadmachine 02 Carbon, TCC Endurance Flat Mount, 12x100mm thru-axle
    Rayon
    Mavic Allroad Disc UST
    • Cadre Roadmachine 02, PF86 bottom bracket, Flat Mount, 12x142mm thru-axle
    • Tubes 02 Carbon, TCC Endurance, Angle Compliance Technology
    • Taille 47 / 51 / 54 / 56 / 58 / 61
    • Fourche Roadmachine 02 Carbon, TCC Endurance Flat Mount, 12x100mm thru-axle
    • Vitesse 2x11
    • Manivelles Shimano 105, 50-34T
    • Cassette Shimano 105, 11-32T
    • Chaine Shimano 105
    • Manettes Shimano 105, Hydraulic
    • Freins Shimano 105, SM-RT70 Rotors (160/160)
    • Guidon BMC RAB 02, ergo top shape, compact bend
    • Potence BMC RSM01, w/ computer and camera mount
    • Tige de selle Roadmachine 01 "D" Premium Carbon, 15mm offset
    • Selle Selle Royal 2075 HRN
    • Moyeux Mavic Allroad Disc UST, Thru Axle (12mm)
    • Jantes Mavic Allroad Disc UST
    • Pneus Vittoria Rubino Pro, 28mm
    • Couleur Super Red
    • Informations UST Tubeless Ready (valves included)
    Geometrie – roadmachine 01 Dura Ace Di2
    Grösse 47 51 54 56 58 61
    Stack mm 514 / 530 539 / 555 560 / 576 574 / 590 593 / 609 617 / 633
    Reach mm 375 / 369 378 / 372 387 / 382 393 / 388 400 / 395 407 / 402
    Sitzrohr st mm 420 464 507 522 539 573
    Oberrohr tt' mm 522 532 546 556 568 583
    Steuerrohr ht mm 95 122 138 154 173 198
    Sitzwinkel sa ° 74.2 74.2 74.2 74.2 74.2 74.2
    Steuerwinkel sa ° 71.2 71.2 72 72 72 72
    Kettenstrebe rc mm 410 410 410 410 410 410
    Front center fc mm 583.7 595 597 608 622 636
    Radstand wb mm 983 995 997 1008 1022 1036
    Tretlagerabsenkung mm 71 71 71 71 71 71
    Gabellänge fl mm 369 369 369 369 369 369
    Gabelvorlauf fr mm 50 50 45 45 45 45
    Nachlauf mm 63 63 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 90 100 110 120 120
    Vorbauwinkel ° -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
    Lenkerbreite mm 400 420 420 420 440 440
    Lenker Drop mm 125 125 125 125 125 125
    Lenkervorbiegung mm 70 70 70 70 70 70
    Sattelstützenlänge mm 250 250 310 310 310 310
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 717 757 786 803 820 849
    Malheureusement, ce modèle est épuisé!
