BMC Teammachine SLR01 DISC FOUR

Bikes > BMC > teammachine > Teammachine SLR01 DISC FOUR

  • Teammachine SLR01 DISC FOUR

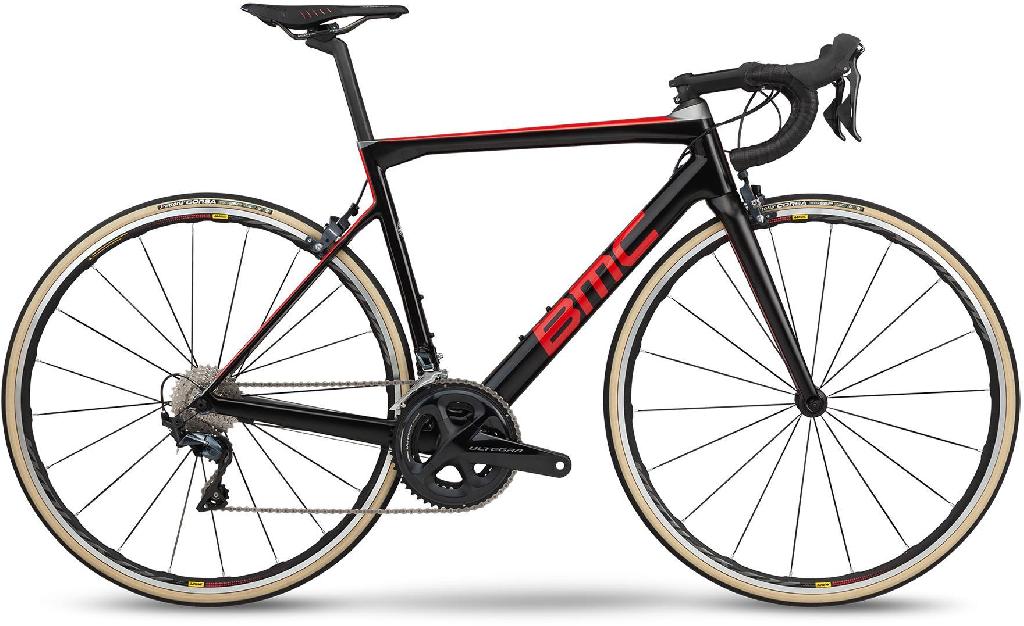

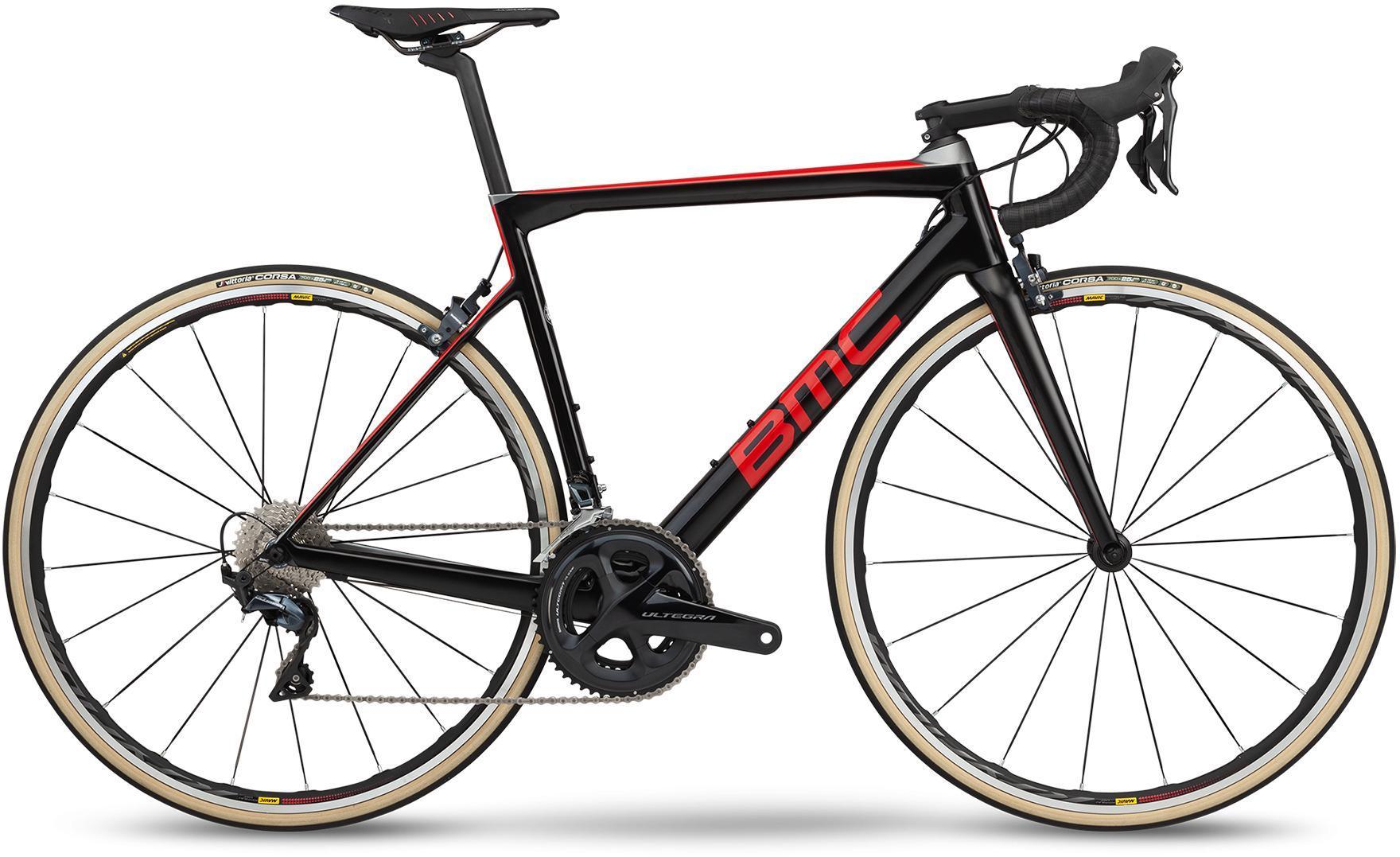

    Teammachine SLR01 DISC FOUR


    Season Sale
    CHF 4769 instead of 5299 -10%

    Derailleur
    Ultegra
    • Frame Teammachine SLR01, PF86 bottom bracket, Flat Mount, 12x142mm thru-axle
    • Tubing 01 Premium Carbon, ACE Technology, TCC Race
    • Size 47 / 51 / 54 / 56 / 58 / 61
    • Fork Teammachine SLR 01 Premium Carbon Disc, TCC Race, Integrated Cockpit, Flat Mount, 12x100mm thru-axle
    • Gears 2x11
    • Chainwheel Shimano Ultegra, 52-36T
    • Cassette Shimano Ultegra, 11-30T
    • Chain Shimano Ultegra
    • Shifters Shimano Ultegra, Hydraulic
    • Brakes Shimano Ultegra, SM-RT800 Rotors (160 /140)
    • Handlebar BMC RAB 02, ergo top shape, compact bend
    • Stem BMC ICS 01 - Integrated Cockpit Design, w/ computer and camera mount
    • Seatpost Teammachine SLR01 "D" Premium Carbon, 15mm offset
    • Seat Fizik Antares R5, kium
    • Hubs Mavic Ksyrium Disc UST, Thru Axle
    • Rims Mavic Ksyrium Disc UST
    • Tires Vittoria Corsa, 25mm
    • Color Carbon Red
    • Note UST Tubeless Ready (valves included)
    Geometrie – teammachine SLR01  Dura Ace Di2
    Grösse 48 51 54 56 58 61
    Stack mm 506 530 550 565 584 608
    Reach mm 370 378 387 392 402 410
    Sitzrohr st mm 475 505 535 555 575 605
    Oberrohr tt' mm 520 535 550 560 575 590
    Steuerrohr ht mm 108 128 148 163 183 208
    Sitzwinkel sa ° 73.5 73.5 73.5 73.5 73.5 73.5
    Steuerwinkel sa ° 70.5 72 72.5 72.5 72.5 72.5
    Kettenstrebe rc mm 402 402 402 402 402 402
    Front center fc mm 571 575 586 596 611 626
    Radstand wb mm 963 967 978 988 1003 1019
    Tretlagerabsenkung mm 69 69 69 69 69 69
    Gabellänge fl mm 370 370 370 370 370 370
    Gabelvorlauf fr mm 41.6 41.6 41.6 41.6 41.6 41.6
    Nachlauf mm 76 66 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 100 110 120 130 130
    Vorbauwinkel ° +/- 6 +/- 6 +/- 6 +/- 6 +/- 6 +/- 6
    Lenkerbreite mm 420 420 420 440 440 440
    Lenker Drop mm 123 123 123 123 123 123
    Lenkervorbiegung mm 77 77 77 77 77 77
    Sattelstützenlänge mm 300 300 300 300 300 300
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 726 754 779 797 814 843
