Bikes > BMC > Teammachine > Teammachine SLR 01 Frameset

  • BMC Teammachine SLR 01 Frameset

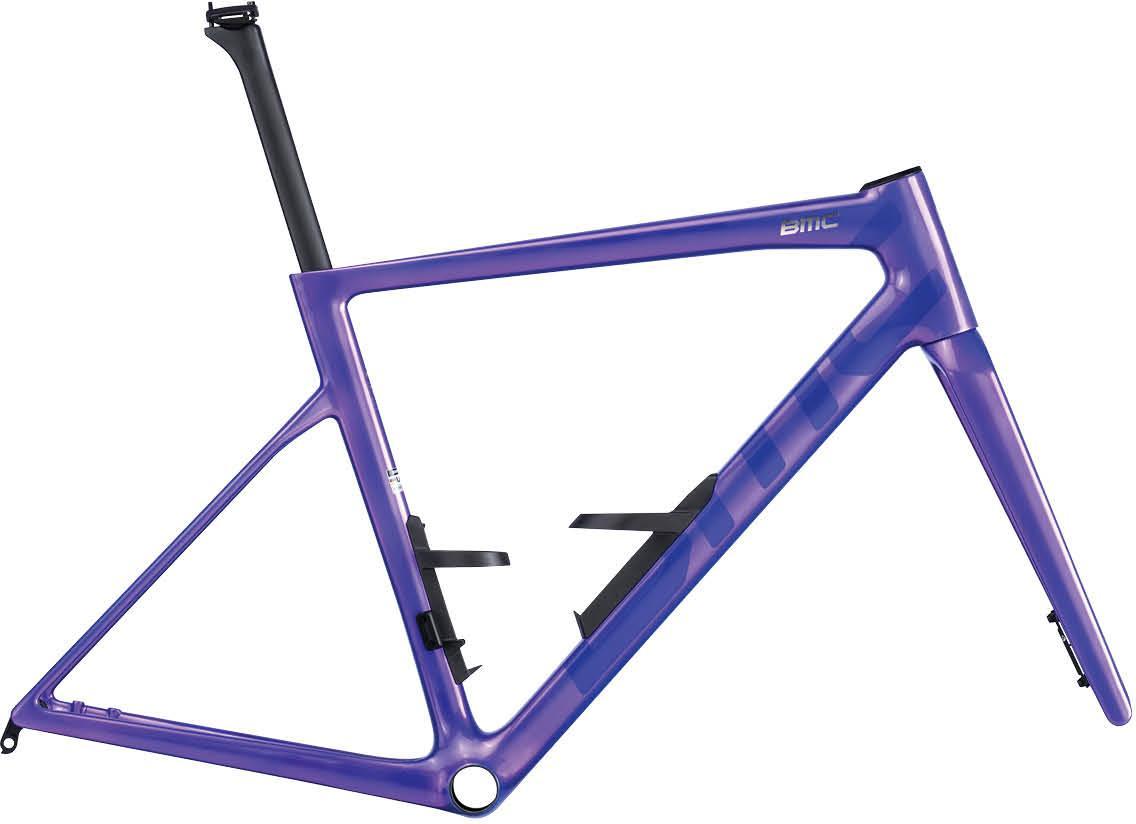

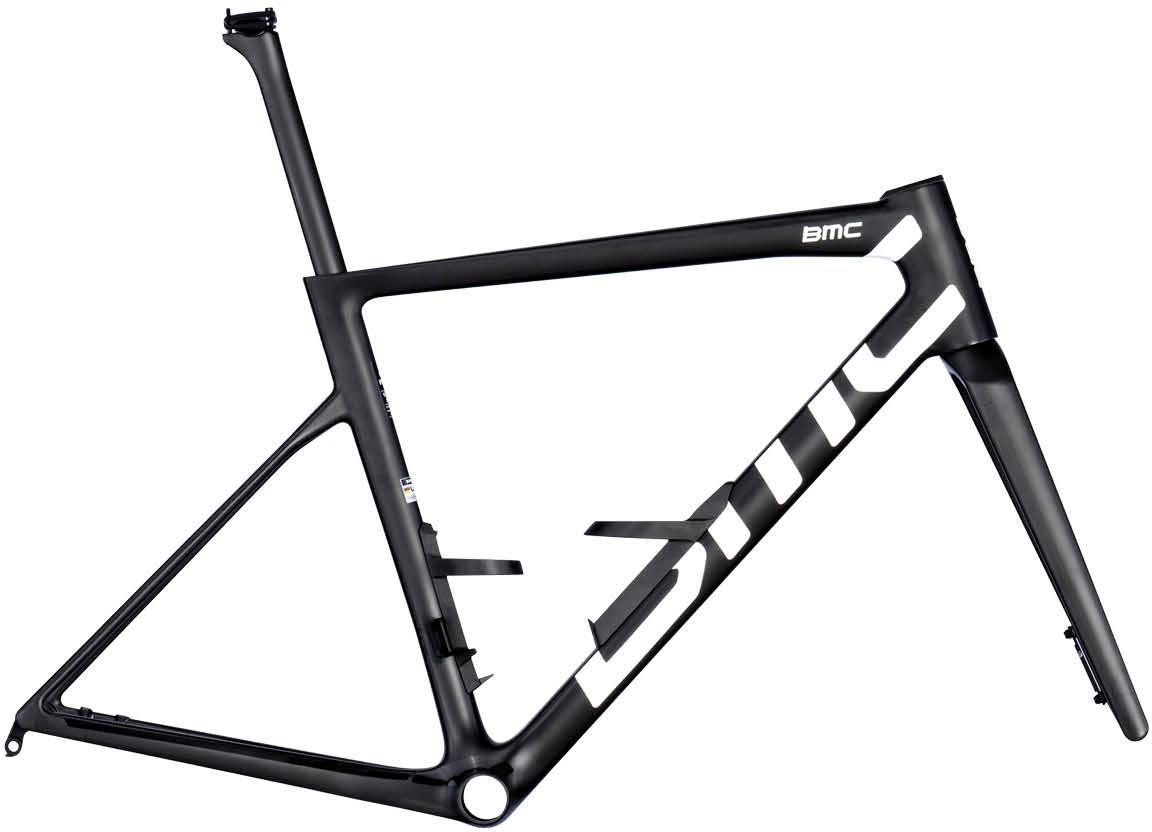

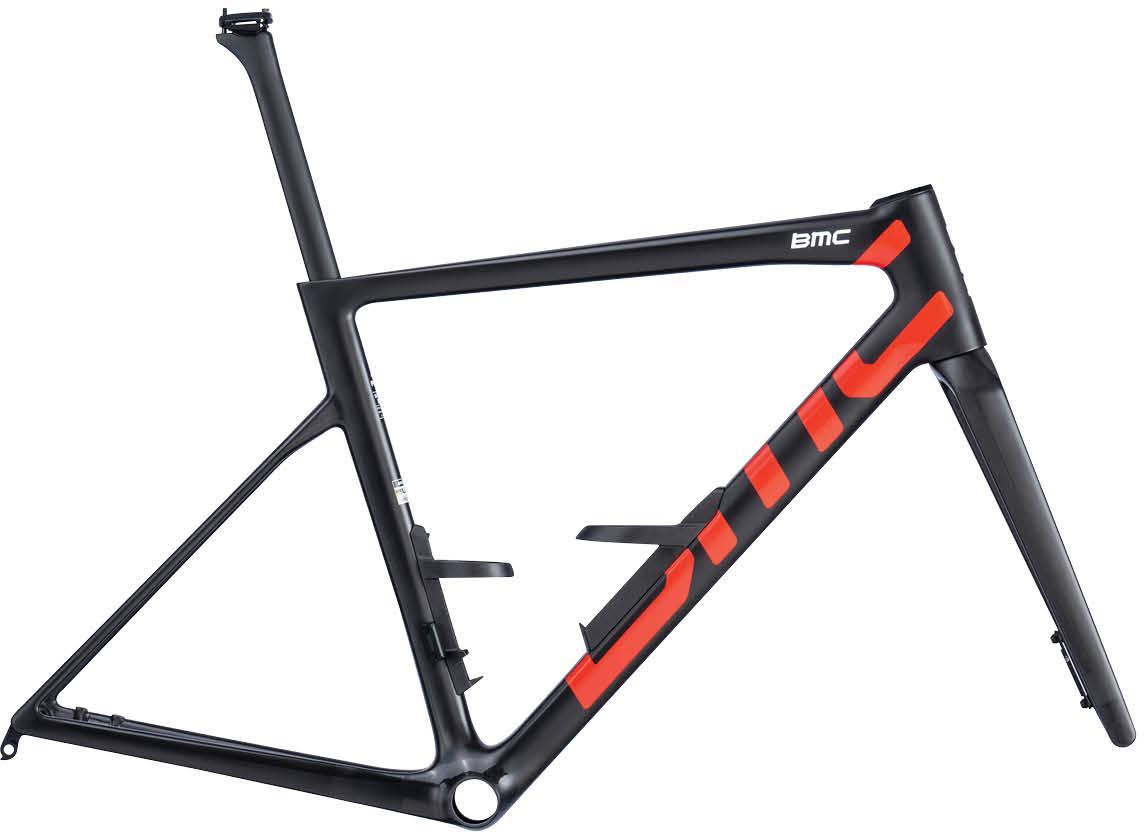

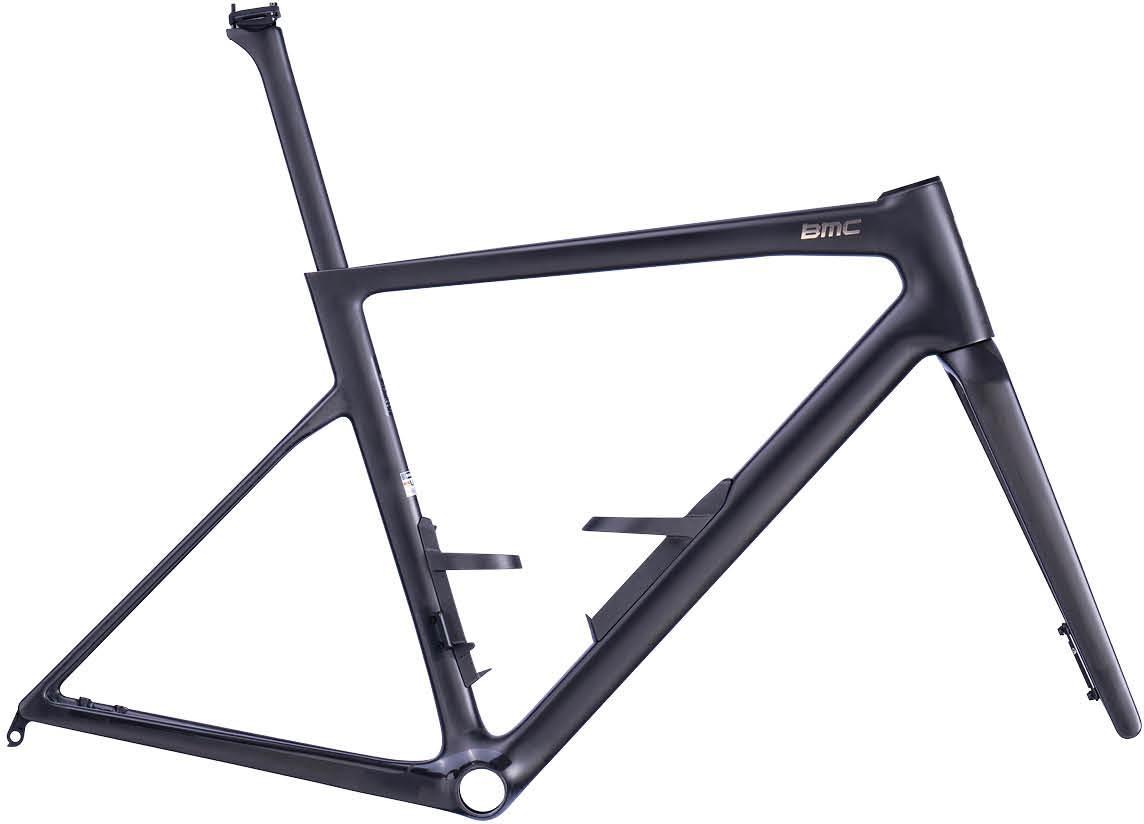

    Teammachine SLR 01 Frameset



    CHF 4999

    PDV CHF 4999
    Dérailleur
    Frein
    Cadre
    Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
    Fourche
    Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
    Rayon
    • Cadre Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
    • Fourche Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
    • Tige de selle Teammachine SLR 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset
    • Couleur Lightweight Carbon
    • Informations
      Weight: /1455.00
      Max Weight: 110
    Geometrie – teammachine SLR01  Dura Ace Di2
    Grösse 48 51 54 56 58 61
    Stack mm 506 530 550 565 584 608
    Reach mm 370 378 387 392 402 410
    Sitzrohr st mm 475 505 535 555 575 605
    Oberrohr tt' mm 520 535 550 560 575 590
    Steuerrohr ht mm 108 128 148 163 183 208
    Sitzwinkel sa ° 73.5 73.5 73.5 73.5 73.5 73.5
    Steuerwinkel sa ° 70.5 72 72.5 72.5 72.5 72.5
    Kettenstrebe rc mm 402 402 402 402 402 402
    Front center fc mm 571 575 586 596 611 626
    Radstand wb mm 963 967 978 988 1003 1019
    Tretlagerabsenkung mm 69 69 69 69 69 69
    Gabellänge fl mm 370 370 370 370 370 370
    Gabelvorlauf fr mm 41.6 41.6 41.6 41.6 41.6 41.6
    Nachlauf mm 76 66 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 100 110 120 130 130
    Vorbauwinkel ° +/- 6 +/- 6 +/- 6 +/- 6 +/- 6 +/- 6
    Lenkerbreite mm 420 420 420 440 440 440
    Lenker Drop mm 123 123 123 123 123 123
    Lenkervorbiegung mm 77 77 77 77 77 77
    Sattelstützenlänge mm 300 300 300 300 300 300
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 726 754 779 797 814 843
