Bikes > BMC > Roadmachine > Roadmachine 01 THREE

  • BMC Roadmachine 01 THREE

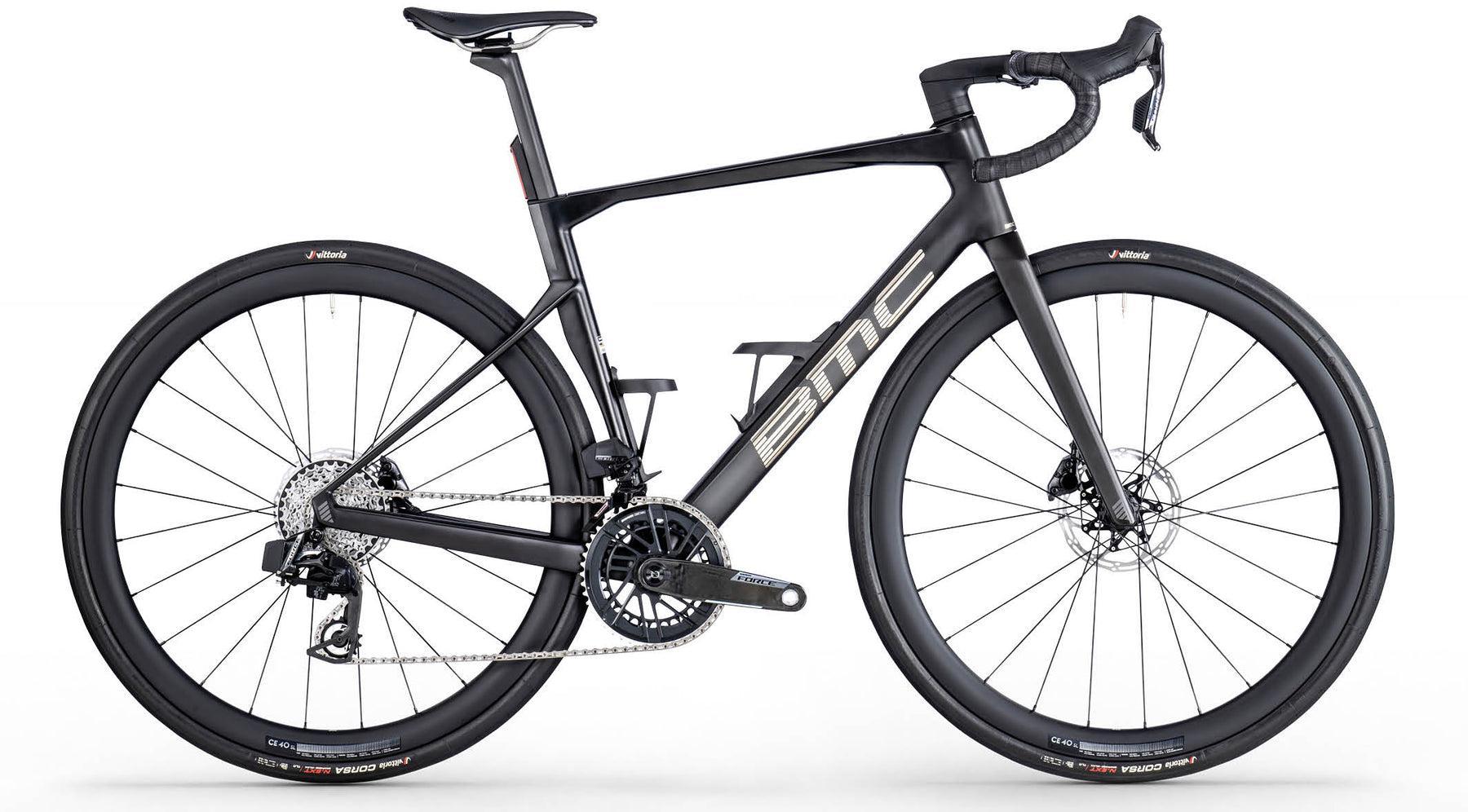

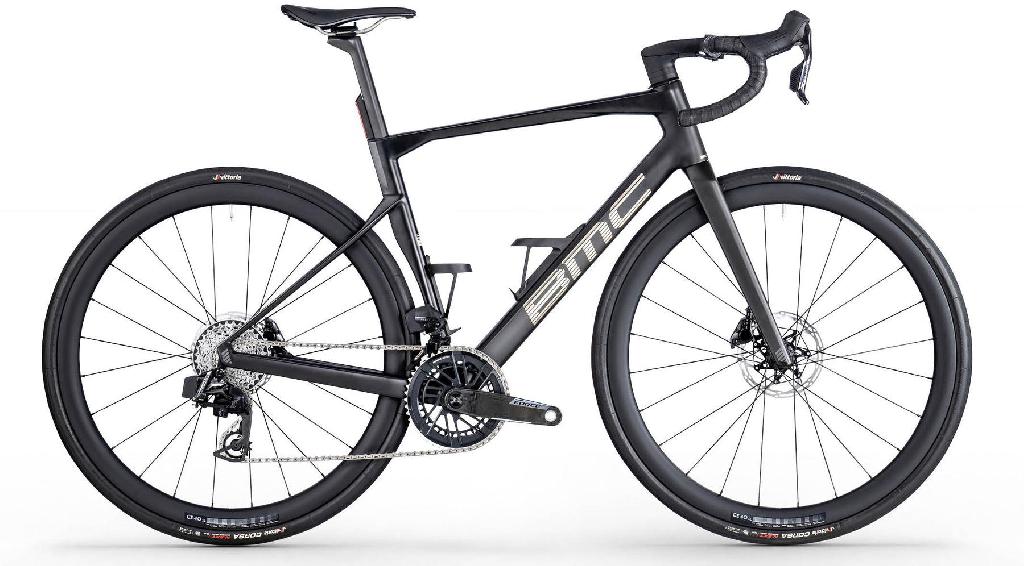

    Roadmachine 01 THREE



    CHF 7999

    PDV CHF 7999
    Dérailleur
    Frein
    SRAM Force AXS (ED-FRC-E1)
    Cadre
    Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
    Fourche
    Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology stealth cable routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) 45mm offset (Size 54-61)
    Rayon
    CE 40 SL Carbon | Tubeless Ready | 40mm [or] CRD-321 SL Carbon | Tubeless Ready | 35mm
    • Cadre Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
    • Fourche Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology stealth cable routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) 45mm offset (Size 54-61)
    • Vitesse 2
    • Cassette SRAM Force (CS-XG-1270-E1)
    • Chaine SRAM Force (CN-FRC-E1)
    • Manettes SRAM Force AXS (ED-FRC-E1)
    • Freins SRAM Force AXS (ED-FRC-E1)
    • Guidon Easton EC70 SL Carbon | 125mm drop, 80mm reach, 4° flare
    • Potence BMC ICS2 | Integrated Cockpit System Technology
    • Tige de selle Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
    • Moyeux CE 40 SL: TXC-812 & TXC-2406 Centerlock [or] CRD-321 SL: TXC-812 & TXC-2406 Centerlock
    • Jantes CE 40 SL Carbon | Tubeless Ready | 40mm [or] CRD-321 SL Carbon | Tubeless Ready | 35mm
    • Pneus Vittoria Corsa N.EXT | Tubeless | 32mm
    • Couleur Carbon Black
    • Informations
      Weight: /7.90
      Max Weight: 110
    Geometrie – roadmachine 01 Dura Ace Di2
    Grösse 47 51 54 56 58 61
    Stack mm 514 / 530 539 / 555 560 / 576 574 / 590 593 / 609 617 / 633
    Reach mm 375 / 369 378 / 372 387 / 382 393 / 388 400 / 395 407 / 402
    Sitzrohr st mm 420 464 507 522 539 573
    Oberrohr tt' mm 522 532 546 556 568 583
    Steuerrohr ht mm 95 122 138 154 173 198
    Sitzwinkel sa ° 74.2 74.2 74.2 74.2 74.2 74.2
    Steuerwinkel sa ° 71.2 71.2 72 72 72 72
    Kettenstrebe rc mm 410 410 410 410 410 410
    Front center fc mm 583.7 595 597 608 622 636
    Radstand wb mm 983 995 997 1008 1022 1036
    Tretlagerabsenkung mm 71 71 71 71 71 71
    Gabellänge fl mm 369 369 369 369 369 369
    Gabelvorlauf fr mm 50 50 45 45 45 45
    Nachlauf mm 63 63 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 90 100 110 120 120
    Vorbauwinkel ° -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
    Lenkerbreite mm 400 420 420 420 440 440
    Lenker Drop mm 125 125 125 125 125 125
    Lenkervorbiegung mm 70 70 70 70 70 70
    Sattelstützenlänge mm 250 250 310 310 310 310
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 717 757 786 803 820 849
